MODÈLE | Puissance du moteur kW/HP |
Poids opérationnel t |
Profondeur max. d’excavation mm |
Capacité du godet m³ |
---|---|---|---|---|
Pelle hydraulique standard | ||||

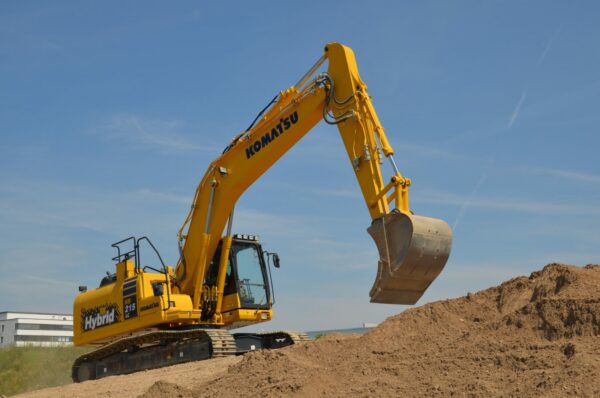

HB215LC-2-Hybrid | 110 / 150 | 22,6-23,4 | 6,62 | max. 1,68 |
HB215LC-3 Hybrid | 110.148 | 23/23.87 | 6.62 | 1.68 |
PC170LC-10 | 90,0 / 122 | 17,3 – 17,9 | 6,25 | max. 0,94 |
PC170LC-11 | 90 / 122 | 17,4 – 18.6 | 6,25 | max. 0,94 |
PC170LC-11 LGP | 90/121 | 19.5/22.8 | 6.22 | 0.94 |

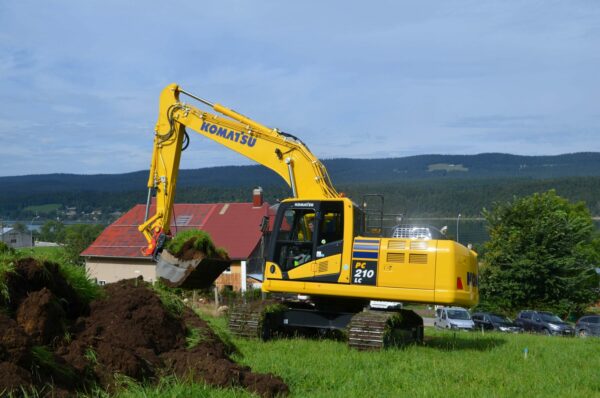

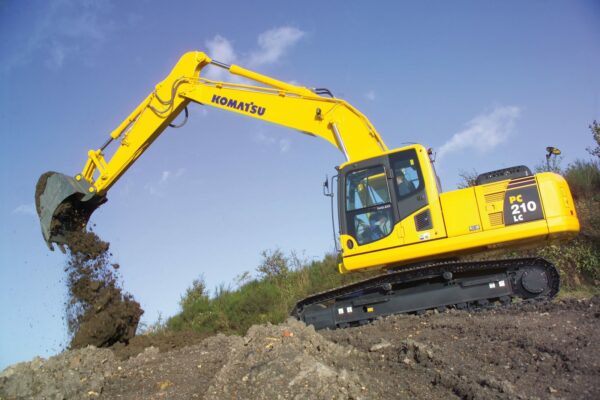

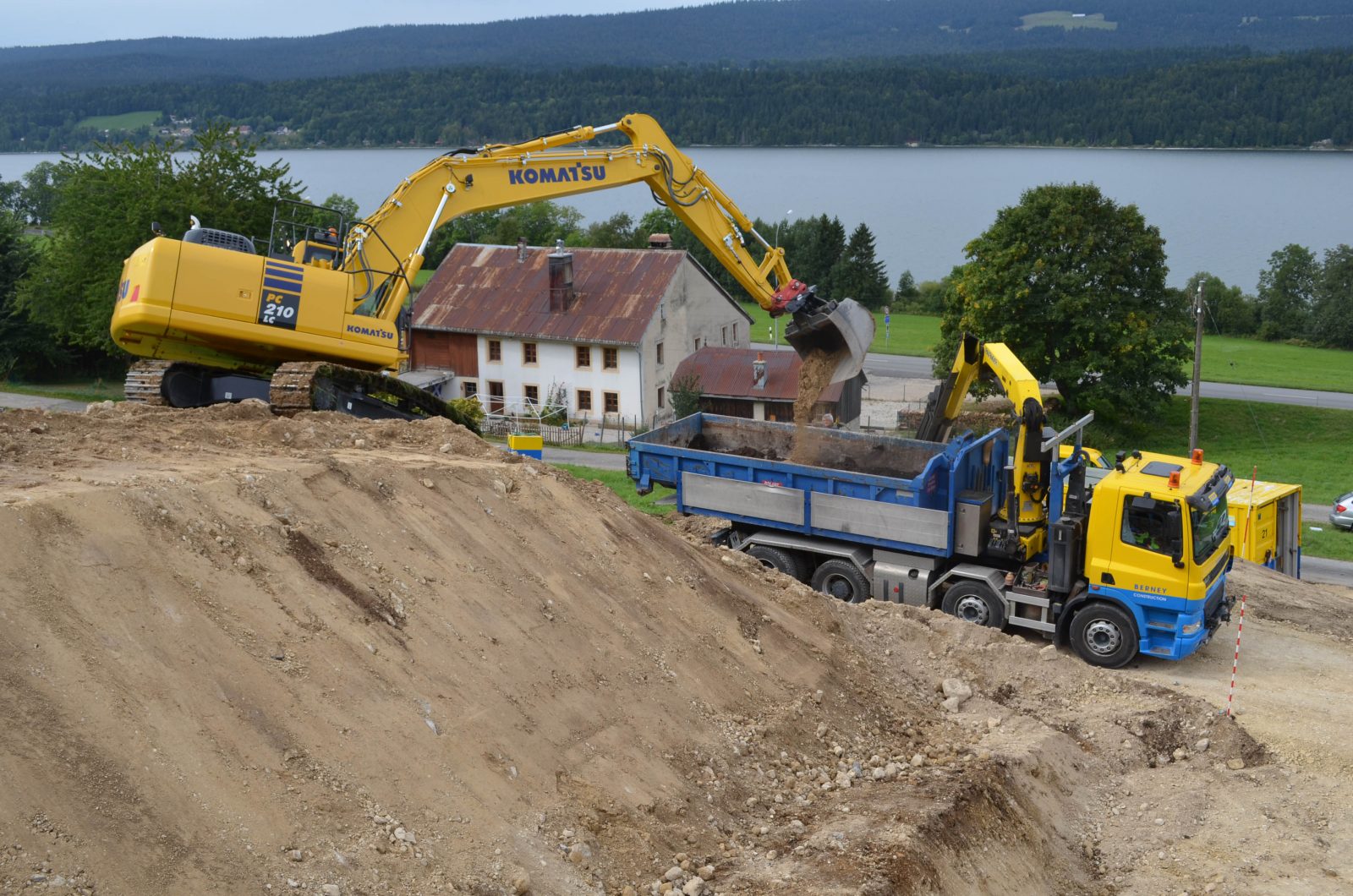

PC210-11-ou-LC-11-ou-NLC-11 | 123/165 | 22,1-23,6 | 6,62 | max. 1,69 |
PC210LCI-11 | 123/165 | 22.12/23.58 | 6.62 | 1.68 |
PC230NHD-11 | 123 / 165 | 23,51 | 6,47 | max. 1,45 |

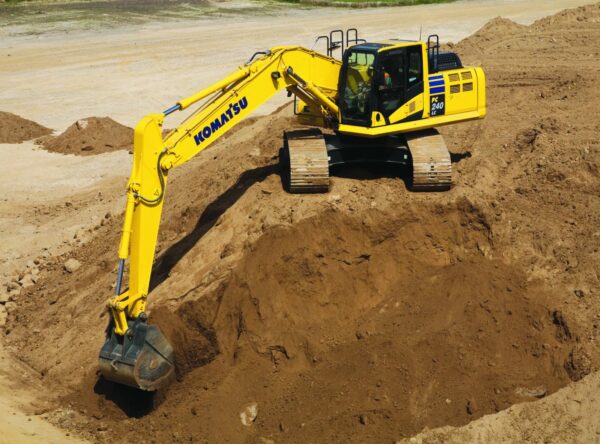

PC240LC-11-ou-NLC-11 | 141 / 192 | 24,7 – 27,5 | 7,32 | max. 1,89 |

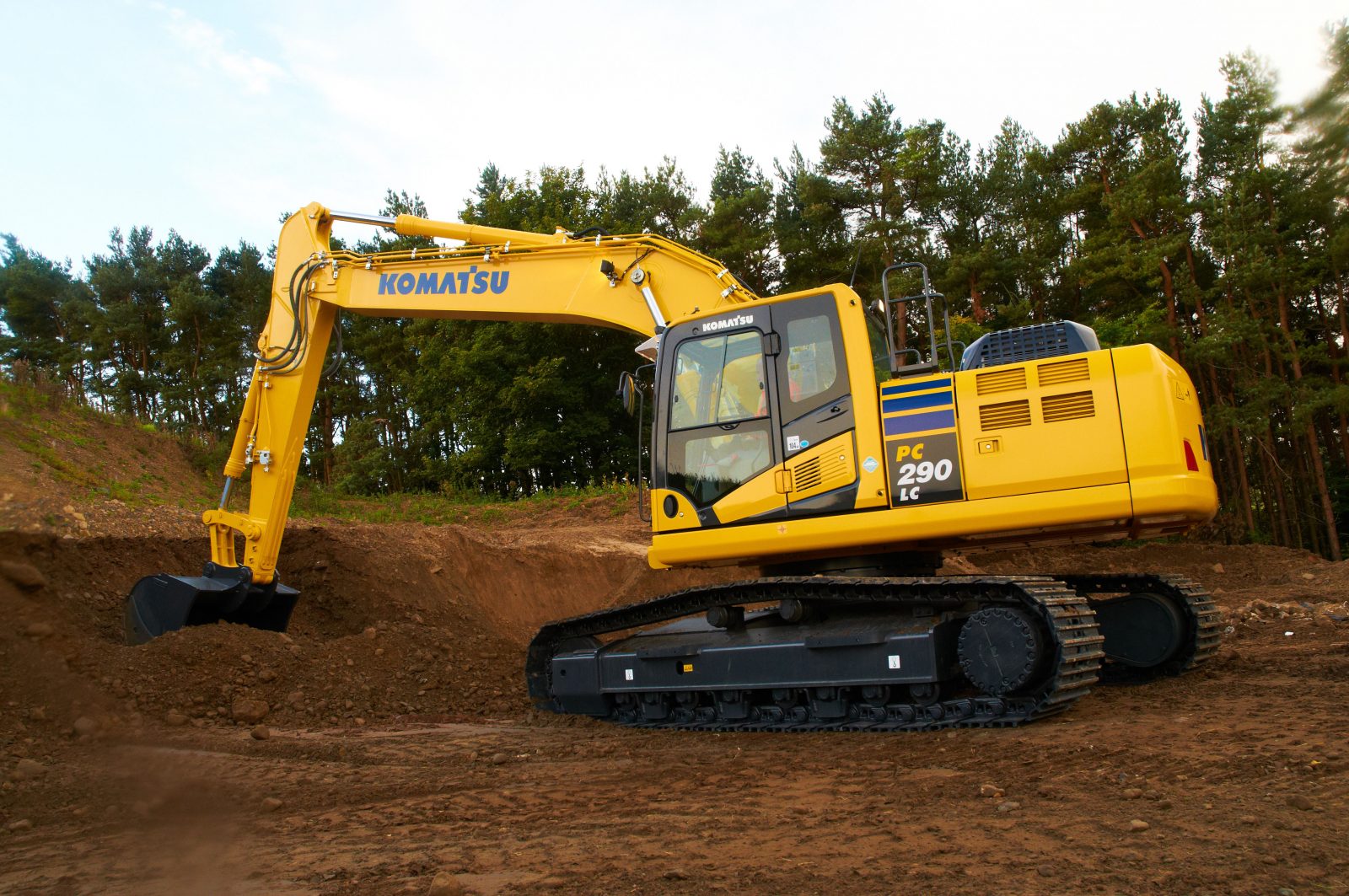

PC290LC-11-ou-NLC-11 | 159 / 213 | 29,9 – 30,9 | 7,22 | max. 2,02 |

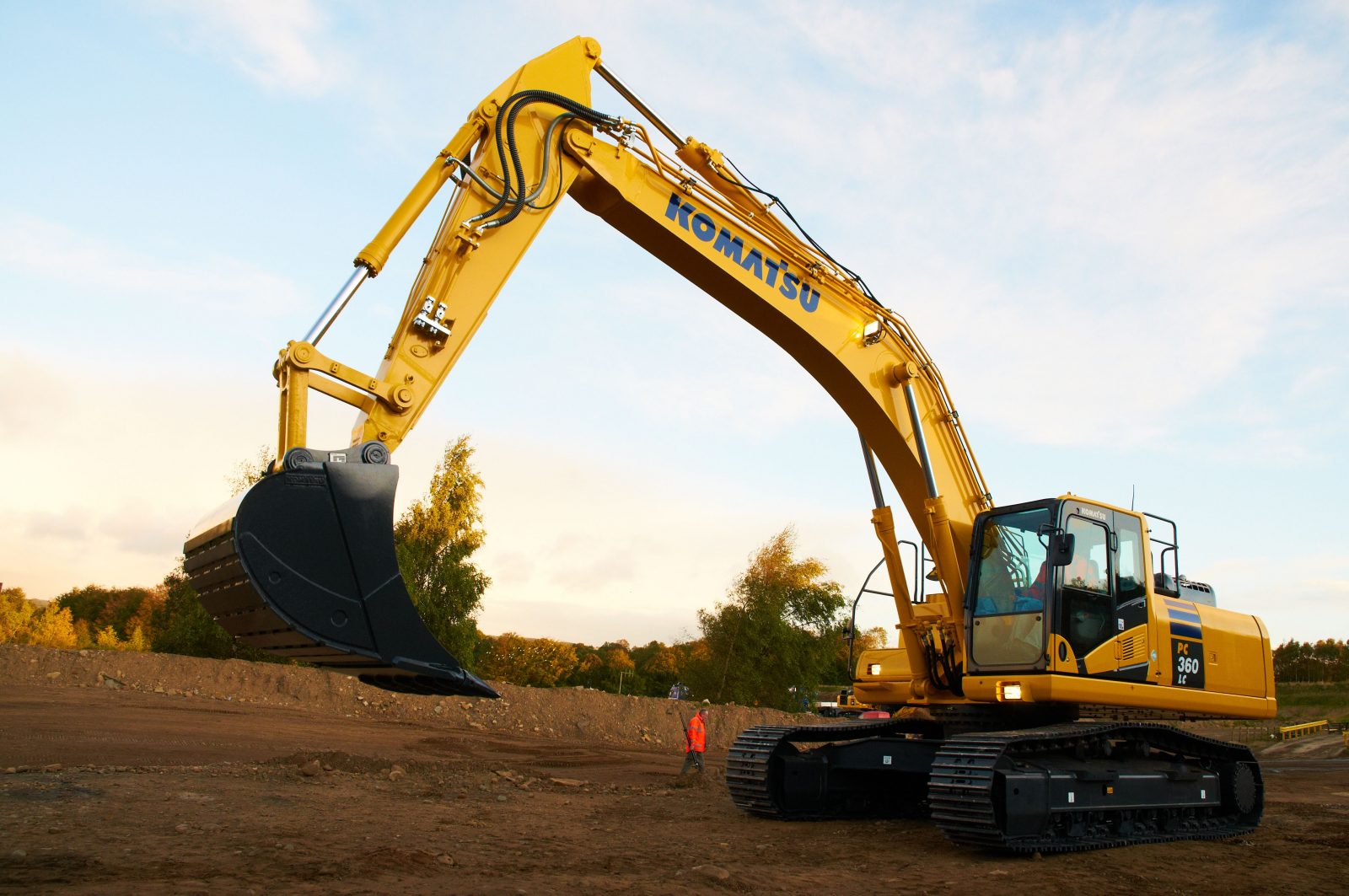

PC360LC-11-ou-NLC-11 | 202 / 275 | 35,8 – 36,9 | 8,18 | max. 2,66 |
PC360LCI-11 | 202/271 | 35.6/36.2 | 7.28 | 2.66 |

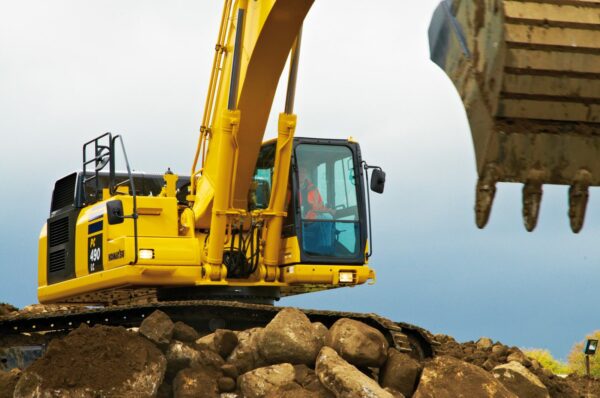

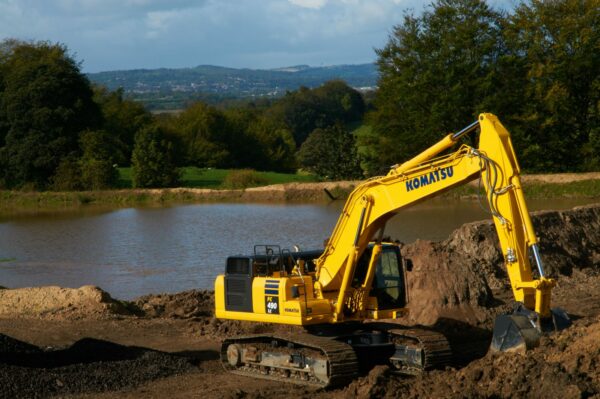

PC490-11 ou LC-11 | 270 / 367 | 46,5 – 48,9 | 9,19 | max. 3,5 |

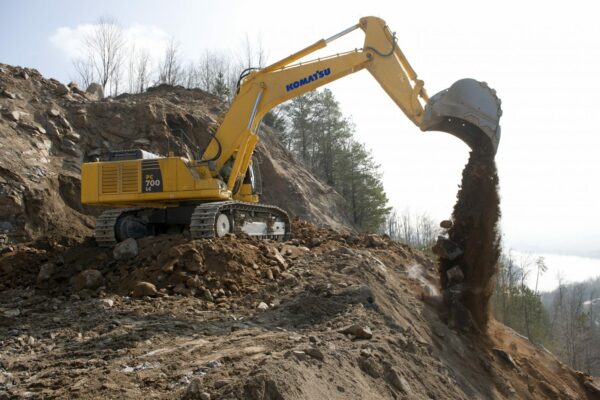

PC700LC-11 | 327 / 445 | 66,1 – 69,5 | max. 5,58 | |

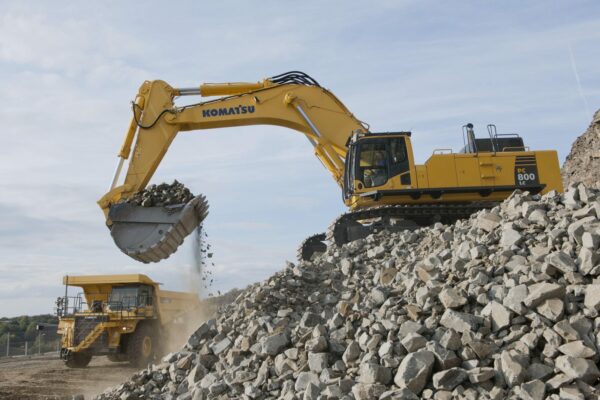

PC800-8-ou-LC-8 | 370 / 503 | 78,8 – 84,7 | 8,45 | max. 6,91 |
Pelles hydrauliques sur chenilles à rayon court de giration arrière | ||||

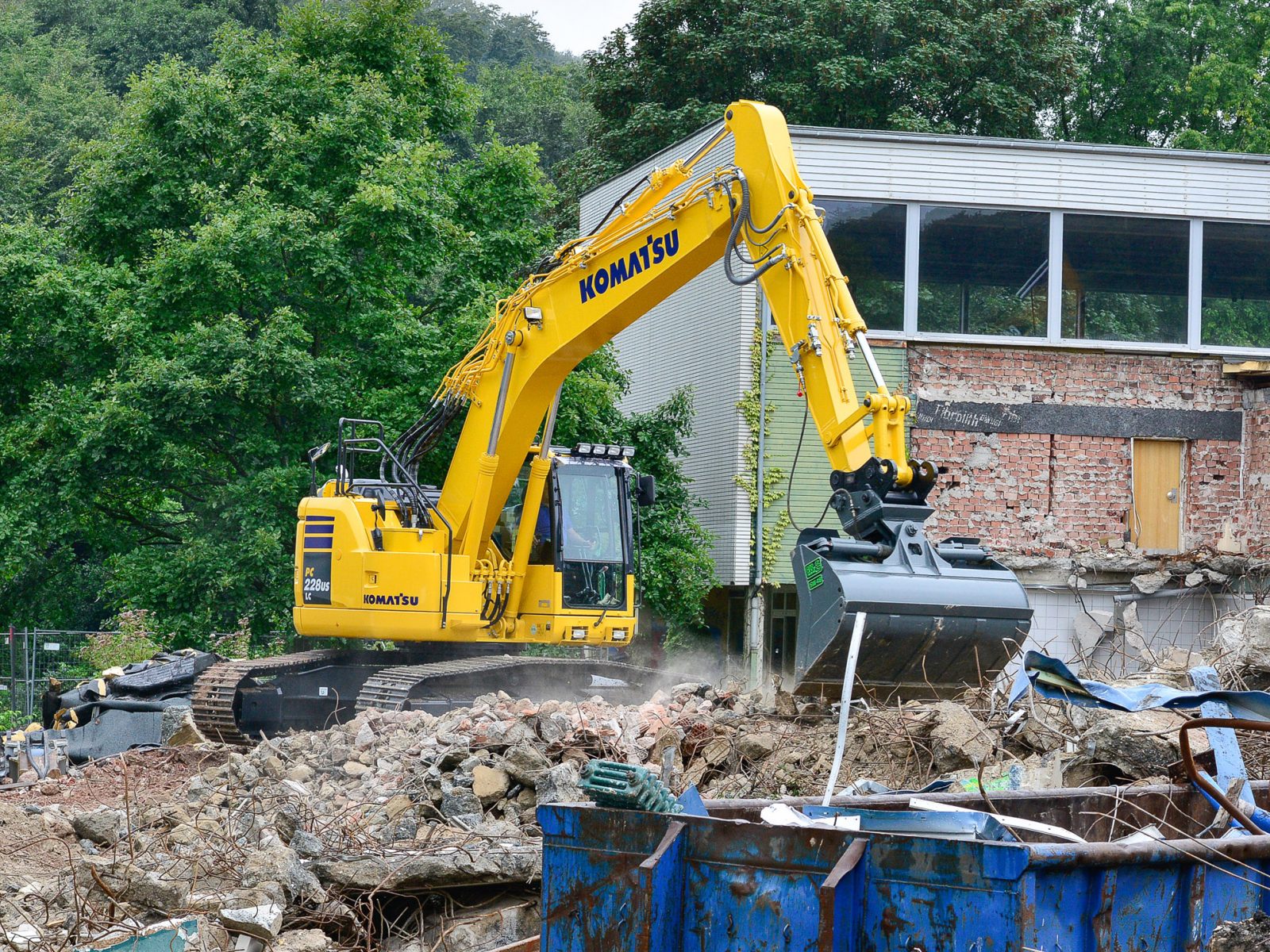

PC228USLC-11 | 123 / 165 | 23,6 – 24,1 | 6,62 | max. 1,49 |
Pelles hydrauliques sur chenilles super long front | ||||

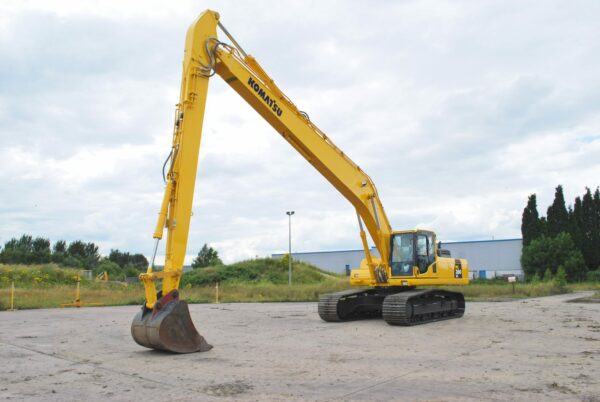

Excavator Range SLF/LR | 202 / 271 | 23,2 – 42,3 | 11,8 | max. 0,51 – 1,1 |
